How to Wire a Two-Way Electrical Outlet
A two-way, or duplex outlet, is the common electrical outlet we're familiar with in our homes. These will occasionally need to be replaced, or you may need to wire a new one in a remodeling job or addition. This basic piece of electrical wiring is a skill every homeowner should be familiar with--it requires only basic tools and a few minutes of time.
-
Turn off all power to the circuit you'll be working on by switching the circuit breaker to "OFF" at the circuit breaker box.
-
Strip 3/8 to 1/2 inch of insulation from the wires you'll attach to the outlet with wire strippers. If the outlet will be part of a circuit leading to another outlet, a switch, or a light, strip the same amount of insulation from that pair of wires as well.
-
Bend the bare wires so that each is shaped like a small hook, large enough to fit over the screw terminals of the outlet. A small pair of needle-nosed pliers is perfect for this task.
-
Loosen the screw terminals on the sides of the outlet with a screwdriver. Back the screws out far enough so that you can slip the ends of the wires over them easily.
-

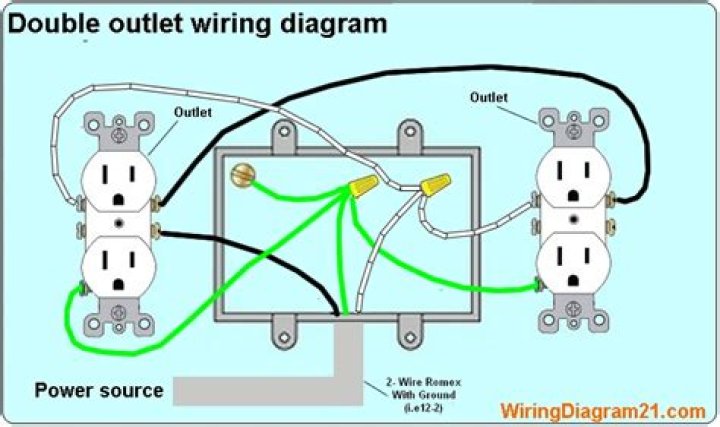

Take the first pair of wires and slide one wire over the the first brass-colored screw terminal, and one wire over the first silver-colored terminal. Tighten the screws so that the wires are securely held in place. Repeat this process with the second pair of wires and second set of screw terminals.
-
Push the outlet into the gang box in your wall, and screw it in place with two screws, one at the top, and one at the bottom.
-
Turn the power on and test the outlet. Then put the outlet cover onto the outlet with a screwdriver.
